Dimensional Data

The following data is engineering data for a variety of oilfield equipment. This includes drill pipe, tubing, casing, and collars, as well as blowout preventers, elevators and more.

Click thumbnails to view full size images, or download a PDF of all data:

Sucker Rod Connections

Tubing Sizes

Tubing Made to API Specifications

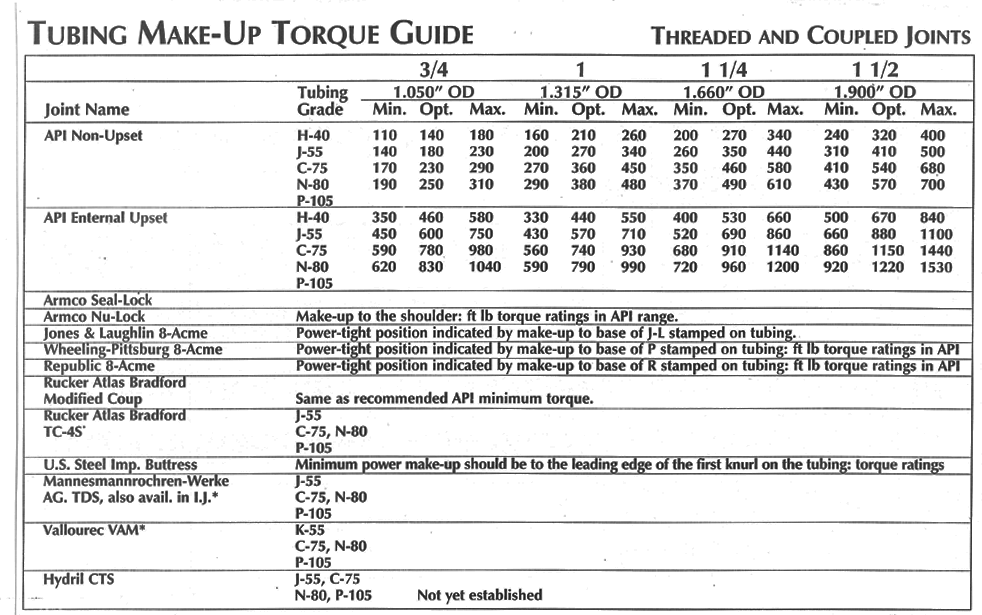

Tubing Make-Up Torque Guide Pt 1

Tubing Make-Up Torque Guide Pt2

Tubing Make-Up Torque Guide Pt3

Tubing Make-Up Torque Guide Pt4

API # Rotary Shouldered Connection

API Regular

API Full Hole

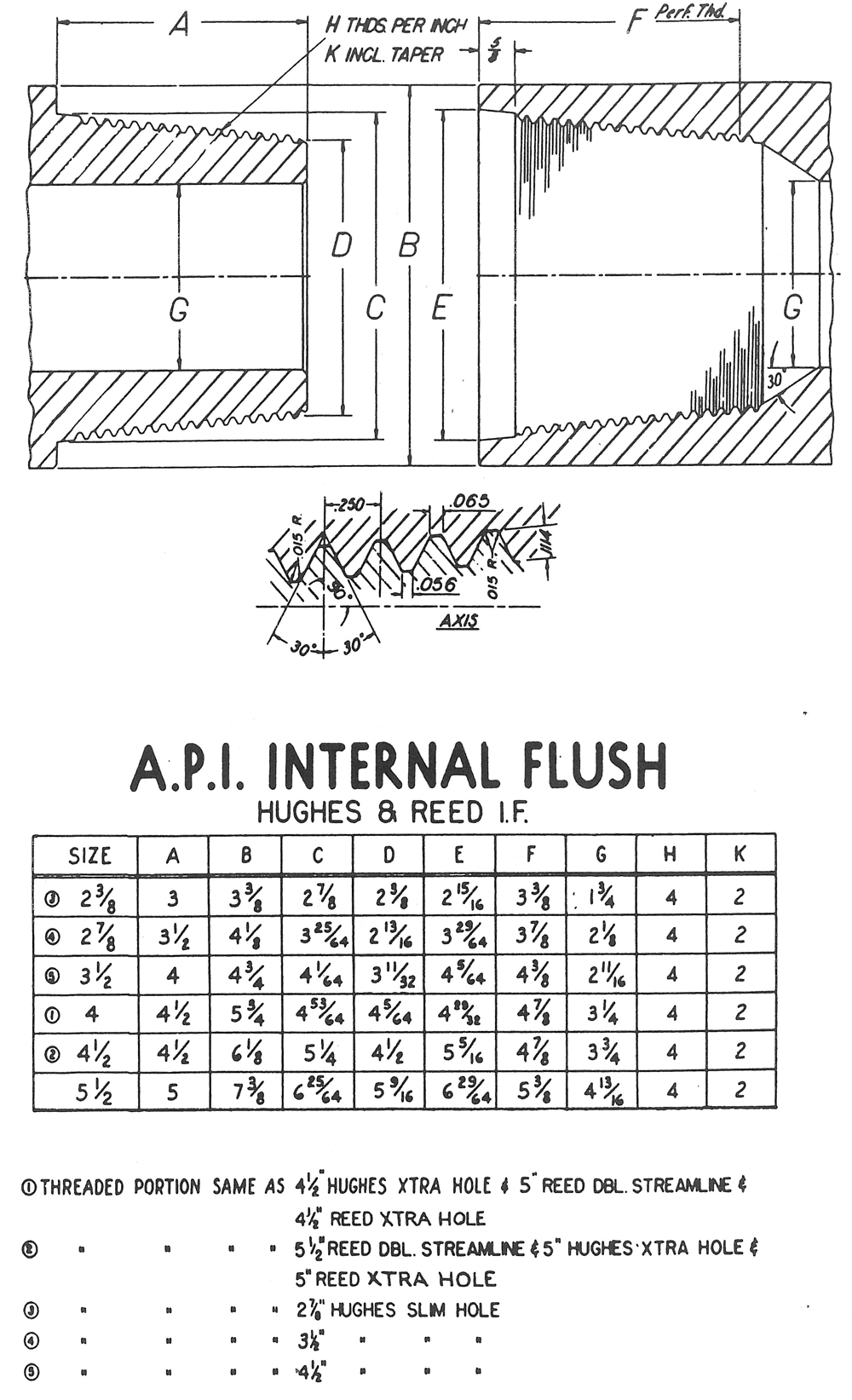

API Internal Flush

Hughes Xtra Hole/Reed Extra Hole

American Iron Open Hole

Hughes Slimline H-90

Hughes H-90 Pt. 1

Hydril Joints

Hughes H-90 Pt. 2

Seamless Drill Pipe Performance

Std Smith Hevi-Wate Drill Pipe

Tool Joint Threads

Drill Pipe Sizes

1.66" Drill Pipe w/ 2" LDC Specs

Weights of 30' 0" Drill Collars

Drill Collars Pt. 1

Drill Collars Pt. 2

Drill Collars Pt. 3

Drill Collars Pt. 4

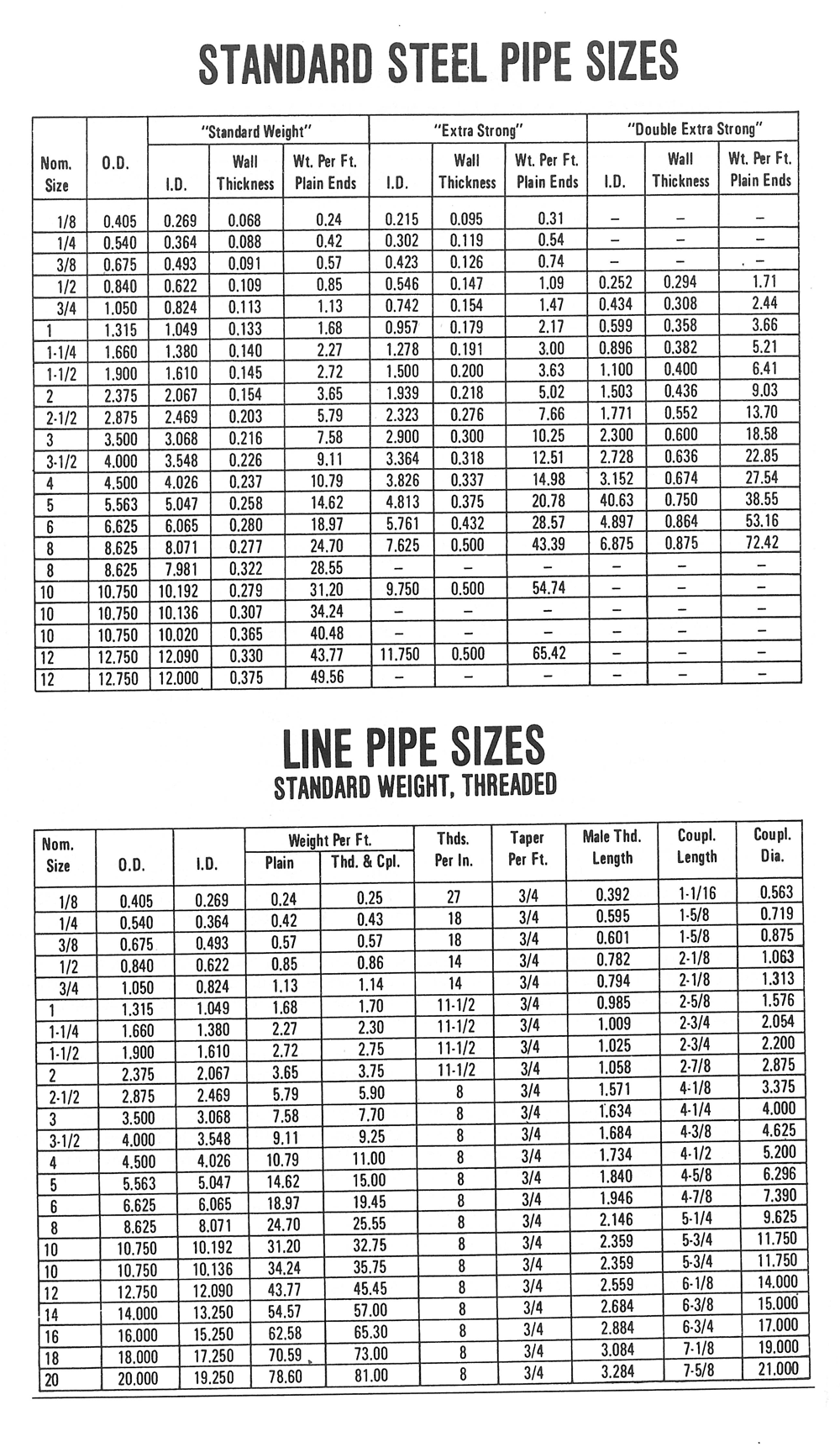

Standard Steel and Line Pipe Sizes

Square and Hexagon Kellys

Casing Sizes Threaded/Coupled Pt1

Casing Sizes Threaded/Coupled Pt2

Casing Make-Up Torque Guide Pt.1

Casing Make-Up Torque Guide Pt.2

Casing Make-Up Torque Guide Pt.3

Casing Make-Up Torque Guide Pt.4

Casing Data Bit Sizes/Clearances Pt1

Casing Data Bit Sizes/Clearances Pt2

Drill Bit Specifications

API Ring Joint Flange Data

Hydril GK, Shaffer Spherical BOP

Shaffer Type LWP, LWS Hydraulic Double BOPs

Shaffer Sentiel Ram BOP

Shaffer Hydraulic Cellular Ctrl Gate

Shaffer Chasovoy 7 1/16 5000 BOP

Elevators
